Name: VIVIX –S DR 10x12 Cassette-Size Wireless Gadox Panel –
SKU: 201019

Multi-purpose Portable Flat Panel Detector for Digital Radiography

VIVIX-S 1012N is Vieworks’ new portable flat panel detector for digital radiography in various applications such as ENT, equine, and cephalometry, etc. with active area of 10” x 12”. Its 124um pixel TFT sensor gives high resolution image and its Wi-Fi communication system provides fast wireless transfer speed. It is a perfect blending of state-of-the-art technologies in medical engineering, optics, electronics and information technologies with brilliant hardware and software design. The product is available in both CsI(1012NAW) and GADOX(1012NBW) scintillator types

Panel Features

High Image Quality

*High spatial resolution with 124㎛ with high DQE and MTF

Wireless Data Transmission

*InsideAP™ Fast wireless communication by IEEE 802.11n

Stable and Reliable AED (Automatic Exposure Detection)

*Needs no connection to an X-Ray Generator Detector *AP Mode or Detector Only Mode

Convenient Usability

*The active area of 10” x 12” * High mobility with light and slim design *VXvueTM Viewer software program operated under WindowsTM

Applications

General Radiography Veterinary Equine ENT Dental

Technical Specifications of the Panel Package

Model Name	FXRD-1012NAW / FXRD-1012NBW
Technology	a-Si TFT with photodiode
Scintillator	CsI:Tl / Gd2O2S:Tb
Pixel Pitch	124 ㎛
Spatial Resolution	4.0 lp/㎜
Pixels	2048 x 2560 pixels
Image Size	10" x 12" (25.4 ㎝ x 31.7 ㎝)
Grayscale	16 bit
Image Acquisition Time	Wired: 1.5 s Wireless: 3 s
Recommended Cycle Time	15 s
Data Interface	Gigabit Ethernet IEEE 802.11n
X-ray Generator Interface	Line trigger: DR trigger Mode Auto trigger: AED Mode

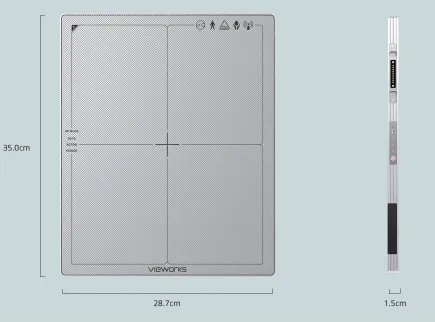

Dimensions	28.7 ㎝ x 35.0 ㎝ x 1.5 ㎝
Weight	2.2 kg (including battery)
Battery	Lithium Ion 3100 mAh 3 h (Capturing)
Dust and Water Resistant	IP53
X-ray Voltage Range	40 - 150 kVp
Operating Environment	10℃ to 35℃ 30 % to 85 % RH (non-condensing)
Power	DC 24 V, 0.8 A

* Specifications are subject to change without prior notice.

Workstations Specs

1TB Local Mini-PACS in a RAID 1 (2 Total Drives)
Intel Core i3 Processor 6100 CPU (3.7 GHz)
4GB, Windows 7 Professional 64-bit VXvue Acquisition Software
Monitor: 23″ Touch Screen – Resolution 1920×1080 Ratio: 1000:1
Licensed MIRAssist Bridge 2x1TB (1TB RAID 1)

Warranty

	Five (5) year Panel Manufacturer Warranty
	Three (3) year Computer Acquisition Station and Monitor Warranty from the Manufacturer* *Station and Monitor Warranty plan includes Next Business Day On-site Support from Lenovo

Available Options

SYSTEM OPTIONS

Additional Viewing Licenses
Mobile App for iPad and iPhone
Laptop or Tablet for Mobile Applications
Protective Case with Handle for movable applications

Drop Insurance Coverage

OPTIONAL DROP INSURANCE COVERAGE

Covers damage to the panel caused by an accidental drops
Interest free financing for multi year policies.
Coverage will not be cancelled due to claims.
Pricing is fixed for the duration of the enrollment.
Permanent detector replacement sent directly from the manufacturer.
Coverage is provided for up to (2) occurrences per year.

VXVue Software
The VXVue Acquisition software with Pureimpact ™blends cutting edge technology with a user friendly interface. The software features: easy management for simplified work flow, post-processing algorithm for an efficient diagnosis, various image adjustment tools, a user-friendly touch interface with intuitive GUI, and customizable skins.
