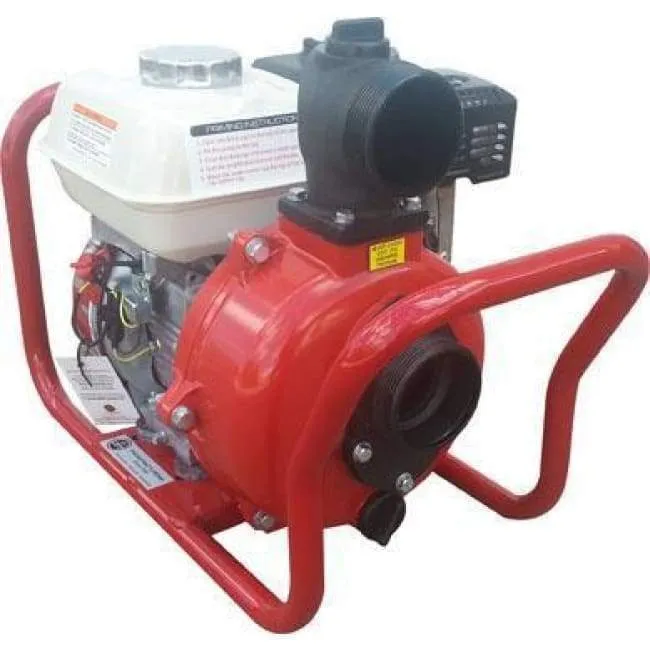

ENGINE SPECIFICATIONS
GX200 Honda air cooled engine
Single cylinder, 4-stroke gasoline engine
Fuel tank size : 0.82Gal (3.1L)

PUMP UNIT SPECIFICATIONS
Self priming system
Mechanical seal
Single stage pump
Inlet connection: 3" male NPT
Outlet connection: 3" male NPT
Dimensions : Length 24 1/4'' (616mm) X Width 16'' (406mm) X height 17 1/2'' (445mm)
Wet weight : 80 lbs (37kg)

MAX FLOW : 200 GPM
MAX PRESSURE : 40 PSI
165 GPM @ 10 PSI
130 GPM @ 20 PSI
80 GPM @ 35 PSI
